Allgemeine Spezifikationen

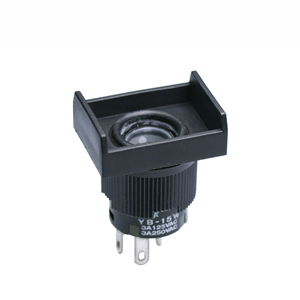

| Artikelnummer | YB15WRKW01 |
|---|---|
| Description | Short Body Illuminated Pushbutton Switches |
| Name | ILLUMINATED PUSHBUTTONS |
| Serien | YB |
| Pole | SPDT |
| Schaltungen | On-(On) |
| Nennwert | 0.4 | Beleuchtung | Illuminated |
| Befestigungsart | Panel Mount |
| Stichwörter | Panel Seal,Supplied with mounting nut and o-ring AT089 |
| Contact Finish | Silver |
| Actuator Type | Rectangular Cap(Optional Accessory) |
| Panel Cutout Dimensions | 16Dia. |
| Termination Style | Solder Lug |
| Illumination Type | Lamps(Optional Accessory) |
| IP | IP65 |
Schalterzubehör
- Rectangular Solid Cap/White White:AT3003BB
- Rectangular Solid Cap/Red White:AT3003CB
- Rectangular Solid Cap/Yellow White:AT3003EB
- Rectangular Solid Cap/Green White:AT3003FB
- Rectangular Solid Cap/Blue White:AT3003GB
- Rectangular Cap for Bright LED & Bicolor/Clear White:AT3006JB
- Rectangular Cap for Bright LED & Bicolor/Clear Red:AT3006JC
- Rectangular Cap for Bright LED & Bicolor/Clear Amber:AT3006JD
- Rectangular Cap for Bright LED & Bicolor/Clear Green:AT3006JF
- Rectangular Spot Illuminated Cap with Built-in LED/Red 2V:AT3012C02JA
- Rectangular Spot Illuminated Cap with Built-in LED/Red 2V:AT3012C02JB
- Rectangular Spot Illuminated Cap with Built-in LED/Red 2V:AT3012C02JC
- Rectangular Spot Illuminated Cap with Built-in LED/Red 2V:AT3012C02JE
- Rectangular Spot Illuminated Cap with Built-in LED/Red 2V:AT3012C02JF
- Rectangular Spot Illuminated Cap with Built-in LED/Red 5V:AT3012C05JA
- Rectangular Spot Illuminated Cap with Built-in LED/Red 5V:AT3012C05JB
- Rectangular Spot Illuminated Cap with Built-in LED/Red 5V:AT3012C05JC
- Rectangular Spot Illuminated Cap with Built-in LED/Red 5V:AT3012C05JE
- Rectangular Spot Illuminated Cap with Built-in LED/Red 5V:AT3012C05JF
- Rectangular Spot Illuminated Cap with Built-in LED/Red 12V:AT3012C12JA
- Rectangular Spot Illuminated Cap with Built-in LED/Red 12V:AT3012C12JB
- Rectangular Spot Illuminated Cap with Built-in LED/Red 12V:AT3012C12JC
- Rectangular Spot Illuminated Cap with Built-in LED/Red 12V:AT3012C12JE
- Rectangular Spot Illuminated Cap with Built-in LED/Red 12V:AT3012C12JF
- Rectangular Spot Illuminated Cap with Built-in LED/Red 24V:AT3012C24JA
- Rectangular Spot Illuminated Cap with Built-in LED/Red 24V:AT3012C24JB
- Rectangular Spot Illuminated Cap with Built-in LED/Red 24V:AT3012C24JC
- Rectangular Spot Illuminated Cap with Built-in LED/Red 24V:AT3012C24JE
- Rectangular Spot Illuminated Cap with Built-in LED/Red 24V:AT3012C24JF
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3012CF02JA
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3012CF02JB
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3012CF02JC
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3012CF02JE
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3012CF02JF
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3012CF05JA
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3012CF05JB
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3012CF05JC
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3012CF05JE
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3012CF05JF
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3012CF12JA
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3012CF12JB
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3012CF12JC
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3012CF12JE
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3012CF12JF
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 24V:AT3012CF24JA
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 24V:AT3012CF24JB
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 24V:AT3012CF24JC
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 24V:AT3012CF24JE
- Rectangular Spot Illuminated Cap with Built-in LED/Red Green 24V:AT3012CF24JF
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 2V:AT3012D02JA
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 2V:AT3012D02JB
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 2V:AT3012D02JC
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 2V:AT3012D02JE
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 2V:AT3012D02JF
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 5V:AT3012D05JA
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 5V:AT3012D05JB
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 5V:AT3012D05JC
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 5V:AT3012D05JE
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 5V:AT3012D05JF
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 12V:AT3012D12JA
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 12V:AT3012D12JB
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 12V:AT3012D12JC
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 12V:AT3012D12JE
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 12V:AT3012D12JF
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 24V:AT3012D24JA
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 24V:AT3012D24JB
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 24V:AT3012D24JC
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 24V:AT3012D24JE
- Rectangular Spot Illuminated Cap with Built-in LED/Amber 24V:AT3012D24JF
- Rectangular Spot Illuminated Cap with Built-in LED/Green 2V:AT3012F02JA
- Rectangular Spot Illuminated Cap with Built-in LED/Green 2V:AT3012F02JB
- Rectangular Spot Illuminated Cap with Built-in LED/Green 2V:AT3012F02JC
- Rectangular Spot Illuminated Cap with Built-in LED/Green 2V:AT3012F02JE
- Rectangular Spot Illuminated Cap with Built-in LED/Green 2V:AT3012F02JF
- Rectangular Spot Illuminated Cap with Built-in LED/Green 5V:AT3012F05JA
- Rectangular Spot Illuminated Cap with Built-in LED/Green 5V:AT3012F05JB
- Rectangular Spot Illuminated Cap with Built-in LED/Green 5V:AT3012F05JC
- Rectangular Spot Illuminated Cap with Built-in LED/Green 5V:AT3012F05JE
- Rectangular Spot Illuminated Cap with Built-in LED/Green 5V:AT3012F05JF
- Rectangular Spot Illuminated Cap with Built-in LED/Green 12V:AT3012F12JA
- Rectangular Spot Illuminated Cap with Built-in LED/Green 12V:AT3012F12JB
- Rectangular Spot Illuminated Cap with Built-in LED/Green 12V:AT3012F12JC
- Rectangular Spot Illuminated Cap with Built-in LED/Green 12V:AT3012F12JE
- Rectangular Spot Illuminated Cap with Built-in LED/Green 12V:AT3012F12JF
- Rectangular Spot Illuminated Cap with Built-in LED/Green 24V:AT3012F24JA
- Rectangular Spot Illuminated Cap with Built-in LED/Green 24V:AT3012F24JB
- Rectangular Spot Illuminated Cap with Built-in LED/Green 24V:AT3012F24JC
- Rectangular Spot Illuminated Cap with Built-in LED/Green 24V:AT3012F24JE
- Rectangular Spot Illuminated Cap with Built-in LED/Green 24V:AT3012F24JF
- Rectangular Cap for Super Bright LED/Clear White:AT3016JB
- Dust Cover/YB:AT4115
- Spring Loaded Protective Guard/YB:AT4175
- O-ring for Panel Seal with AT4115:AT541
- Incandescent Lamp 12V/KB,YB:AT611-12V
- Incandescent Lamp 28V/KB,YB:AT611-28V
- Incandescent Lamp 5V/KB,YB:AT611-5V
- 6-element Bicolor LED/Clear Green/2V:AT621CF02
- 6-element Bicolor LED/Clear Green/5V:AT621CF05
- 6-element Bicolor LED/Clear Green/12V:AT621CF12
- 6-element Bicolor LED/Clear Green/24V:AT621CF24
- Super Bright Single Element LED/Blue:AT625G
- Bright Double Element LED/Red:AT628C
- Bright Double Element LED/Amber:AT628D
- Bright Double Element LED/Green:AT628F
- Super Bright Single Element LED/White:AT631B
- Super Bright Single Element LED/Green:AT632F
- Bright 2- or 4-Element LED/Red 5V:AT634C05
- Bright 2- or 4-Element LED/Red 12V:AT634C12
- Bright 2- or 4-Element LED/Red 24V:AT634C24
- Bright 2- or 4-Element LED/Amber 5V:AT634D05
- Bright 2- or 4-Element LED/Amber 12V:AT634D12
- Bright 2- or 4-Element LED/Amber 24V:AT634D24
- Bright 2- or 4-Element LED/Green 5V:AT634F05
- Bright 2- or 4-Element LED/Green 12V:AT634F12
- Bright 2- or 4-Element LED/Green 24V:AT634F24
